- Suitable for cutting stainless steel, copper, carbon steel andaluminum, and other metals.
- Easy to cut thick metals in a fast and economical way.
- Easy to operate, smooth cutting performance.
- HF-non-touch arc strtingfunction availabel for CUT70C and CUT100C upon request.

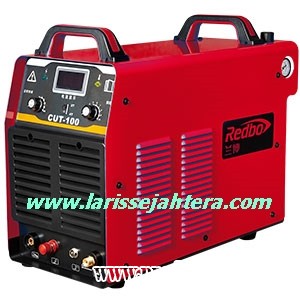

| Model | CUT-100 |
| Input Voltage (V) | 380 |
| Rated Input capacity | 15.2 |
| No-Load voltage (V) | 290 |
| Load voltage (V) | 120 |
| Power factor | 0.93 |
| Output current (A) | 25 – 100 |
| Duty cycle | 60% |
| Suggested Pressure (Mpa) | 0.4 – 0.7 |
| Arc start | HF |
| Max Cutting Thickness (mm) | 0.1 – 35 |
| Protection Class | IP21S |
| Weight (Kg) | 24 |
| Dimensions (mm) | 600x285x485 |
